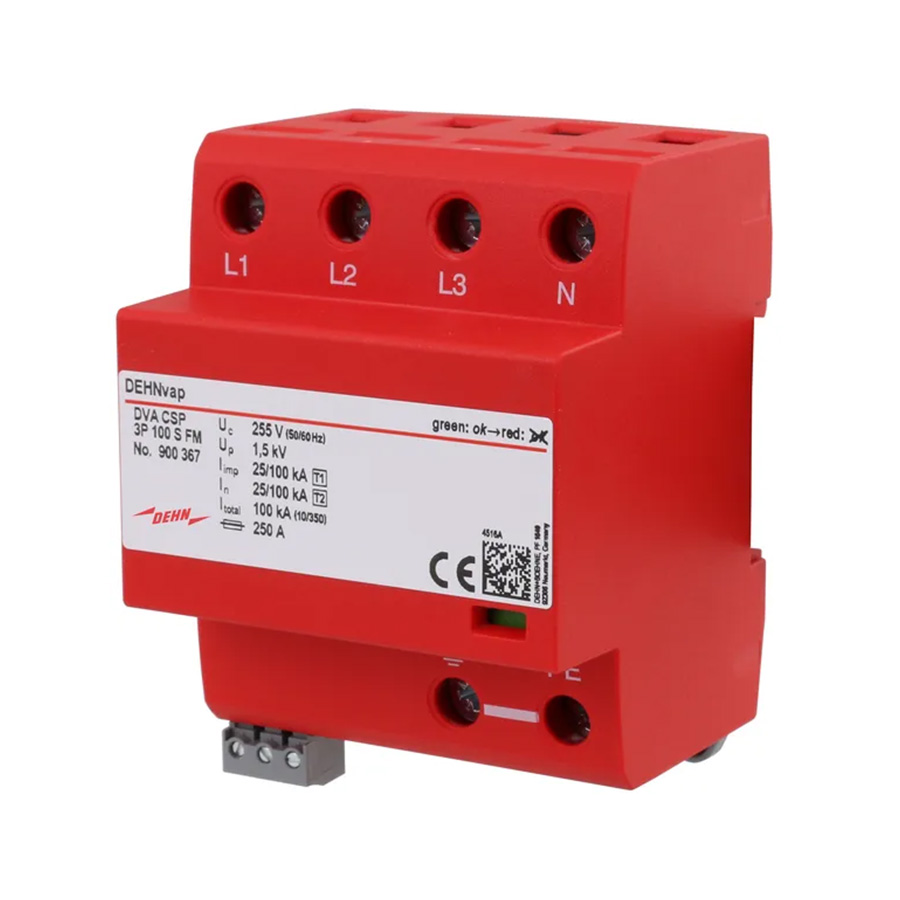

Part No. 900367 DVA CSP 3P 100 S FM
GTIN 4013364322288
Customs tariff No. (EU): 85363090
Gross weight: 529.00 g
PU: 1.00 pc(s)
| SPD according to EN 61643-11 / … IEC 61643-11 | type 1 + type 2 / class I + class II |
| Max. continuous operating voltage (a.c.) [L-N]/[N-PE] (UC ) | 255 V (50 / 60 Hz) |
| Lightning impulse current (10/350 µs) [L-N]/[N-PE] (Iimp ) | 25 / 100 kA |
| Nominal discharge current (8/20 µs) (In ) | 25 / 100 kA |
| Voltage protection level [L-N]/[N-PE] (UP ) | ≤ 1.5 kV / ≤ 1.5 kV |
| Approvals | KEMA |
| Type of remote signalling contact | changeover contact |
